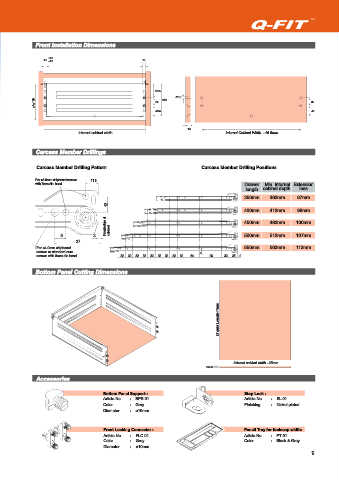

Page 121 - Q-Fit Catalogue and Technical Manual

MAXFIT - MDO 203S

Metal Drawer - Single Extension
Front Installation Dimensions
+1.0
16 15
–1.0
1

5 2 60.5
ø10
32 32
min.203 32 203 32
32 32
46.5 44
• Metal drawer side panels 203mm
• Single extension
13
Internal Cabinet Width Internal Cabinet Width –16.5mm
• 3mm bottom panel
Carcass Member Drillings
• Tool-free drawer front attachment
• Vertical adjustment 3 Carcass Member Drilling Pattern Carcass Member Drilling Positions

2 • Screw-on drawer front (alternative) For ø3.5mm chipboard screws 11.9
with 7mm dia. head Drawer Min. Internal Extension
• Load capacity of 25 kgs length cabinet depth. loss
3 • Self closing feature 350mm 363mm 87mm
1 13
4 • Double out-stop 400mm 413mm 96mm
• Locked in position when extended 450mm 463mm 100mm

• Epoxy powder treatment Front edge of cabinet
9 2 500mm 513mm 107mm
37
One set Maxfit Metal Drawer consists of For ø4.0mm chipboard 9 550mm 563mm 113mm
screws or standard euro
screws with 8mm dia.head 32 32 32 32 32 32 32 32 32 64 96 32 35 2
1 Drawer Slides CR & CL
Bottom Panel Cutting Dimensions
2 Metal Drawer Sides L & R

3 Bottom Panel Support
Drawer Length +1mm
4 Front Locking Connector

5 Metal Back

Article no. for
1 Drawer Slides CR & CL
Article no. for Metal Back 2 Metal Drawer Sides L & R

Drawer Back Article No. Internal Cabinet Width Drawer Length Article No. Internal cabinet width –25mm
3mm
350mm 203DB35/_ 368mm 350mm 203SP35/_
Accessories
400mm 203DB40/_ 426mm 400mm 203SP40/_
Bottom Panel Support : Stop Lock :
450mm 203DB45/_ 476mm 450mm 203SP45/_ Article No. : BPS 01 Article No. : SL 01
Color : Grey Finishing : Nickel plated
500mm 203DB50/_ 526mm 500mm 203SP50/_ Diameter : ø10mm

550mm 203DB55/_ 576mm 550mm 203SP55/_
R9010 White R9010 White Front Locking Connector : Pencil Tray for foolscap width:
R9001 Cream R9001 Cream
R9006 Grey Metallic 10 pieces 5 sets R9006 Grey Metallic Article No. : FLC 01 Article No. : PT 01
Color : Grey Color : Black & Grey
Diameter : ø10mm
