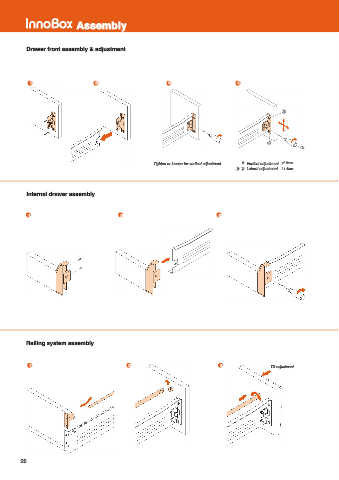

InnoBox Assembly

Drawer front assembly & adjustment

1 2 3 4

B

C
A

Tighten or loosen for vertical adjustment A Vertical adjustment + - 1.8mm
B C Lateral adjustment + - 1.5mm

Internal drawer assembly

1 2 3

Railing system assembly

1 2 3 Tilt adjustment

26
