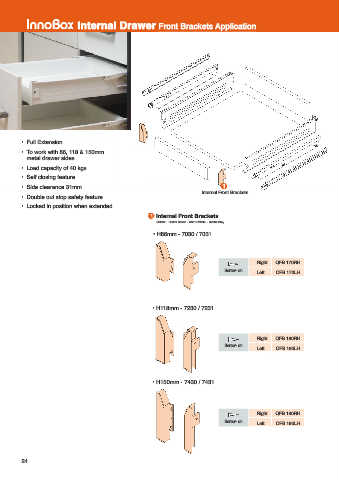

InnoBox Internal Drawer Front Brackets Application
• Full Extension
• To work with 86, 118 & 150mm
metal drawer sides
• Load capacity of 40 kgs
• Self closing feature
• Side clearance 31mm 1
Internal Front Brackets
• Double out stop safety feature
• Locked in position when extended
1 Internal Front Brackets
Colors : R9001 Cream • R9010 White • R7004 Grey
• H86mm - 7030 / 7031
Right QFB.170RH
Screw- on Left QFB.170LH
• H118mm - 7230 / 7231
Right QFB.180RH
Screw- on Left QFB.180LH
• H150mm - 7430 / 7431
Right QFB.190RH
Screw- on Left QFB.190LH
