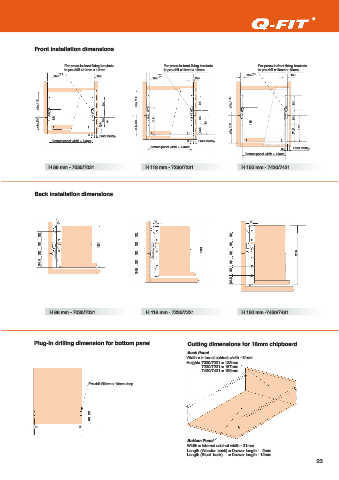

Page 108 - Q-Fit Catalogue and Technical Manual

®

Front installation dimensions

For press-in-front fixing brackets For press-in-front fixing brackets For press-in-front fixing brackets
to pre-drill ø10mm x 12mm to pre-drill ø10mm x 12mm to pre-drill ø10mm x 12mm
+1.5 +1.5
+
15.5 _ 1.0 15.5 _ 1.5 15.5 _ 1.0 15.5
15.5 1.0 15.5

min. 112 64 min. 112 64 min. 112 64

86 64 118 64 64
min. 54 8.5 49 min. 86 40.5 81 min. 118 150 113
8.5 Front overlay 72.5
Bottom panel width + 14mm 8.5 Front overlay
Bottom panel width + 14mm
8.5 Front overlay
Bottom panel width + 14mm
H 86 mm - 7030/7031 H 118 mm - 7230/7231 H 150 mm - 7430/7431

Back installation dimensions
Back Installation dimensions

9 9 9

32 32 32
32 151 32 32
32 32 183 32 215
34.5 32 32
34.5 32
34.5

H 86 mm - 7030/7031 H 118 mm - 7230/7231 H 150 mm -7430/7431

Plug-In drilling dimension for bottom panel Cutting dimensions for 16mm chipboard

Back Panel
Width = Internal cabinet width - 31mm
Height= 7030/7031 = 135mm
7230/7231 = 167mm
7430/7431 = 199mm

Pre-drill Ø5mm x 10mm deep

32
69
9 9

Bottom Panel
Width = Internal cabinet width - 31mm
Length (Wooden back) = Drawer length - 2mm
Length (Steel back) = Drawer length - 12mm
23
