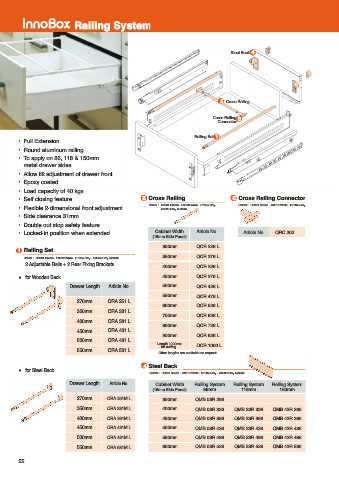

Page 107 - Q-Fit Catalogue and Technical Manual

InnoBox Railing System

Steel Back 4

2 Cross Railing

Cross Railing 3
Connector

Railing Set 1
• Full Extension
• Round aluminum railing
• To apply on 86, 118 & 150mm
metal drawer sides
• Allow tilt adjustment of drawer front
• Epoxy coated
• Load capacity of 40 kgs
• Self closing feature 2 Cross Railing 3 Cross Railing Connector
• Flexible 2-dimensional front adjustment Colors : R9001 Cream • R9010 White • R7004 Grey • Colors : R9001 Cream • R9010 White • R7004 Grey
R9006 Grey Metallic

• Side clearance 31mm
• Double out stop safety feature
• Locked-in position when extended Cabinet Width Article No. Article No. QRC.200
(16mm Side Panel)

300mm QCR.226.L
1 Railing Set
Colors : R9001 Cream • R9010 White • R7004 Grey • R9006 Grey Metallic 350mm QCR.276.L
2 Adjustable Rails + 2 Rear Fixing Brackets
400mm QCR.326.L
for Wooden Back 450mm QCR.376.L
Drawer Length Article No. 500mm QCR.426.L
550mm QCR.476.L
270mm QRA.251.L
600mm QCR.526.L
350mm QRA.331.L
700mm QCR.626.L
400mm QRA.381.L
800mm QCR.726.L
450mm QRA.431.L
900mm QCR.826.L
500mm QRA.481.L
Length 1000mm QCR.1000.L
550mm QRA.531.L for cutting
Other lengths are available on request
4 Steel Back
for Steel Back
Colors : R9001 Cream • R9010 White • R7004 Grey • R9006 Grey Metallic
Drawer Length Article No. Cabinet Width Railing System Railing System Railing System
(16mm Side Panel) 86mm 118mm 150mm
270mm QRA.251M.L 350mm QMB.03R.286

350mm QRA.331M.L 400mm QMB.03R.336 QMB.23R.336 QMB.43R.336
400mm QRA.381M.L 450mm QMB.03R.386 QMB.23R.386 QMB.43R.386
450mm QRA.431M.L 500mm QMB.03R.436 QMB.23R.436 QMB.43R.436
500mm QRA.481M.L 550mm QMB.03R.486 QMB.23R.486 QMB.43R.486
550mm QRA.531M.L 600mm QMB.03R.536 QMB.23R.536 QMB.43R.536

22
