InnoBox 7430 / 7431 Drawer Series

Drawer 3 Steel Back
Sides L & R
2

• Full Extension
• Metal drawer side height 150 mm 4
Front Brackets
• Epoxy coated
• Load capacity of 40 kgs

• Self closing feature 5 Cover Cap 1 Cabinet Member CR + CL
+
• Flexible 2-dimensional front adjustment Middle Member MR & ML
• Side clearance 31mm
• Double out stop safety feature
• Locked-in position when extended

Article no. for 7431 Plug-In
1 Cabinet Member CR & CL + Middle Member MR & ML
2 Drawer Sides L & R 3 Steel Back
Colors : R9001 Cream • R9010 White • R7004 Grey • R9006 Grey Metallic Colors : R9001 Cream • R9010 White • R7004 Grey • R9006 Grey Metallic

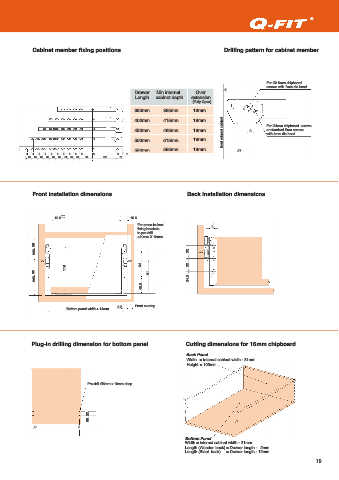

Drawer Length Screw-On Plug-In Cabinet Width Standard
(16mm Side Panel)
350mm 7430.35 7431.35
400mm QMB.03.336
400mm 7430.40 7431.40
450mm QMB.03.386
450mm 7430.45 7431.45
500mm QMB.03.436
500mm 7430.50 7431.50
550mm QMB.03.486
550mm 7430.55 7431.55
600mm QMB.03.536
700mm QMB.03.636

800mm QMB.03.736

4 Standard Front Brackets 5 Standard Cover Cap
Colors : R9001 Cream • R9010 White • R7004 Grey
Screw- on QFB.110RH
ø3.5 x 15mm (CBS) QFB.110LH
QPC.160
Press-in QFB.120RH
ø10.5 x 11.5mm QFB.120LH
Expansion QFB.130RH
ø10 x 11.5mm QFB.130LH
Nickel-plated steel
