P. 59
®

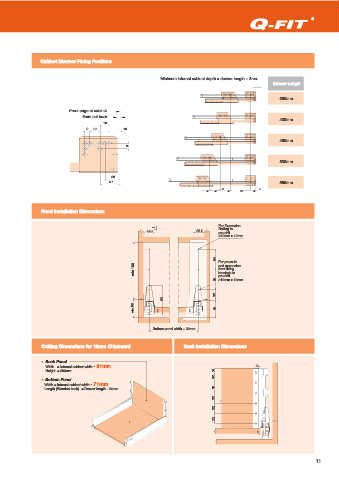

OptiBox OF680R Standard Drawer
Cabinet Profile Drawer Side
1 2
Left / Right Left / Right
Drawer Length
5 350mm OB48.35RH/LH OD68.35RH/LH
400mm OB48.40RH/LH OD68.40RH/LH
450mm OB48.45RH/LH OD68.45RH/LH
500mm OB48.50RH/LH OD68.50RH/LH
550mm OB48.55RH/LH OD68.55RH/LH
3 Cover Cap
4 Left QPC.350LH
2
3 Right QPC.350RH
1
4 Front Fixing Bracket Left / Right
Screw On QFB.210 x2 pcs ! 3.5 x 15.0mm
• Full extension with concealed roller guided runners Press in QFB.220 x2 pcs ! 10.5 x 11.5mm
Expansion QFB.230 x2 pcs ! 10.0 x 11.5mm
• Steel drawer side 114mm
• Load capacity of 40 kgs
5 Rear Fixing Bracket Left / Right (for wooden back)
• Equipped with fast assembly system
Left QRB.251LH
• 2-dimensional front adjustment
Right QRB.251RH
• Intergrated Impul for a silent & soft closing motion
Colour R9010 White • R9006 Grey Metallic • R9017 Black
12
