Page 63 - Q-Fit Catalogue and Technical Manual

®

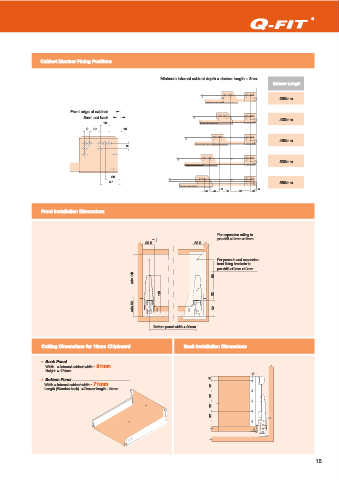

OptiBox IF380R Standard Internal Drawer

Cabinet Profile Drawer Side
1 2
Left / Right Left / Right
Drawer Length
4 350mm OB48.35RH/LH OD38.35RH/LH
400mm OB48.40RH/LH OD38.40RH/LH
450mm OB48.45RH/LH OD38.45RH/LH

500mm OB48.50RH/LH OD38.50RH/LH
550mm OB48.55RH/LH OD38.55RH/LH

3 Cover Cap
Left QPC.350LH
2
6 Right QPC.350RH
3
5 1 4 Rear Fixing Bracket Left / Right
Left QRB.250LH
Right QRB.250RH
• Concealed roller guided runners
• Steel drawer side 82mm Standard
5
• Load capacity of 40 kgs Internal Front Fixing Bracket Left / Right
• Equipped with fast assembly system Left QFB.310LH
Screw On Right QFB.310RH
• 2-dimensional front adjustment
• Intergrated Impul for a silent & soft closing motion
6 Internal Front Profile

Cabinet Width
1000mm QFP.1000L
(Front profile to be cutting in size)

Colour
Colour R9010 White • R9006 Grey Metalic • R9017 Black R9010 White • R9006 Grey Metallic • R9017 Black
16
