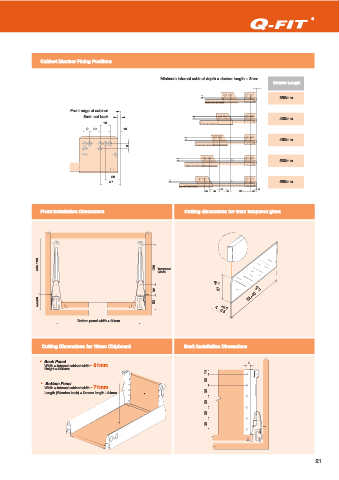

OptiBox BD38 Double Wall Side Extension Standard Drawer

Cabinet Profile Drawer Side
1 2
Left / Right Left / Right
Drawer Length
4
350mm OB48.35RH/LH OD38.35RH/LH
400mm OB48.40RH/LH OD38.40RH/LH
5 450mm OB48.45RH/LH OD38.45RH/LH
500mm OB48.50RH/LH OD38.50RH/LH
550mm OB48.55RH/LH OD38.55RH/LH
6
3 Cover Cap
7
Left QPC.350LH
2
Right QPC.350RH
3
1
4 Rear Fixing Bracket Left / Right (for wooden back)
• Full Extension with concealed roller guided runners Left QRB.280LH
• Steel drawer side 82mm Right QRB.280RH
• Load capacity of 40 kgs
5 Railing set (x2 pcs)
• Equipped with fast assembly system
• 2-dimensional front adjustment 350mm QRAS.321.BP
400mm QRAS.371.BP
• Intergrated Impul for a silent & soft closing motion
450mm QRAS.421.BP
• Applicable to wooden front panel &
internal front fixing bracket 500mm QRAS.471.BP
550mm QRAS.521.BP

6 Boxside Left / Right
7 Front Fixing Bracket Left / Right Drawer Length

450mm Left QBSS.450LH
Screw On QFB.210 x2 pcs (! 3.5 x 15.0mm)
Press in QFB.220 x2 pcs (! 10.5 x 11.5mm) Right QBSS.450RH
500mm Left QBSS.500LH
Expansion QFB.230 x2 pcs (! 10.0 x 11.5mm)
Right QBSS.500RH
550mm Left QBSS.550LH
Right QBSS.550RH

Colour R9010 White • R9006 Grey Metalic • R9017 Black R9010 White • R9006 Grey Metallic • R9017 Black
Colour
