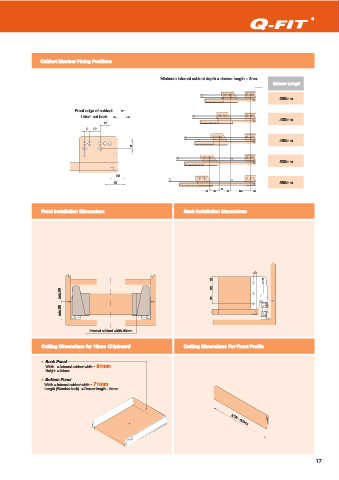

OptiBox IF384R Double Railing Internal Drawer

Cabinet Profile Drawer Side
1 2
Left / Right Left / Right
Drawer Length
350mm OB48.35RH/LH OD38.35RH/LH
4
400mm OB48.40RH/LH OD38.40RH/LH
450mm OB48.45RH/LH OD38.45RH/LH
500mm OB48.50RH/LH OD38.50RH/LH
550mm OB48.55RH/LH OD38.55RH/LH

5
3 Cover Cap
8
2 Left QPC.350LH
Right QPC.350RH
3
7
1
4 Rear Fixing Bracket Left / Right (for wood back)
6
Left QRB.270LH
Right QRB.270RH
• Concealed roller guided runners
• Steel drawer side 82mm
5 Railing set (x4 pcs)
• Load capacity of 40 kgs
350mm QRAS.321.BP
• Equipped with fast assembly system
400mm QRAS.371.BP
• 2-dimensional front adjustment
450mm QRAS.421.BP
• Intergrated Impul for a silent & soft closing motion
500mm QRAS.471.BP
550mm QRAS.521.BP
Double Railing
6
Internal Front Fixing Bracket Left / Right
Left QFB.330LH
Screw On Right QFB.330RH

Internal Front
7 8 Cross Railing
Profile
Cabinet Width
1000mm QFP.1000L QCR.1000L
(Front profile to be cutting in size)

Colour
Colour R9010 White • R9006 Grey Metalic • R9017 Black R9010 White • R9006 Grey Metallic • R9017 Black
