Page 102 - Q-Fit Catalogue and Technical Manual

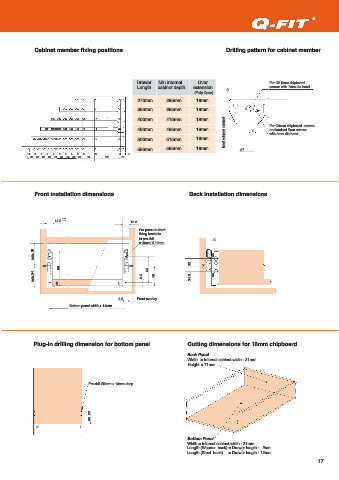

InnoBox 7230 / 7231 Drawer Series

3 Steel Back

Drawer
Sides L & R
2

• Full Extension
• Metal drawer side height 118 mm 4
Front Brackets
• Epoxy coated
• Load capacity of 40 kgs

• Self closing feature 5 Cover Cap 1 Cabinet Member CR + CL
+
• Flexible 2-dimensional front adjustment Middle Member MR & ML
• Side clearance 31mm
• Double out stop safety feature
• Locked-in position when extended

Article no. for 7231 Plug-In
1 Cabinet Member CR & CL + Middle Member MR & ML
2 Drawer Sides L & R 3 Steel Back
Colors : R9001 Cream • R9010 White • R7004 Grey • R9006 Grey Metallic Colors : R9001 Cream • R9010 White • R7004 Grey • R9006 Grey Metallic
Drawer Length Screw-On Plug-In Cabinet Width Standard
(16mm Side Panel)
350mm 7230.35 7231.35
400mm QMB.03.336
400mm 7230.40 7231.40
450mm QMB.03.386
450mm 7230.45 7231.45
500mm QMB.03.436
500mm 7230.50 7231.50
550mm QMB.03.486
550mm 7230.55 7231.55
600mm QMB.03.536
700mm QMB.03.636

800mm QMB.03.736

4 Standard Front Brackets 5 Standard Cover Cap
Colors : R9001 Cream • R9010 White • R7004 Grey
Screw- on QFB.110RH
ø3.5 x 15mm (CBS) QFB.110LH
QPC.160
Press-in QFB.120RH
ø10.5 x 11.5mm QFB.120LH
Expansion QFB.130RH
ø10 x 11.5mm QFB.130LH
Nickel-plated steel

18
