Page 99 - Q-Fit Catalogue and Technical Manual
P. 99

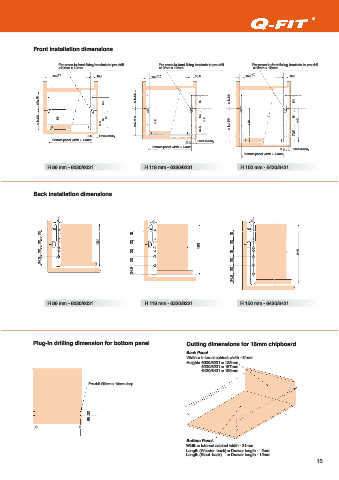

InnoBox Internal Drawer Front Brackets Application
• Single Extension
• To work with 86, 118 & 150mm
metal drawer sides
• Load capacity of 30 kgs
• Self closing feature
• Side clearance 31mm 1 Internal Front Brackets
• Double out stop safety feature
• Locked in position when extended
1 Internal Front Brackets
Colors : R9001 Cream • R9010 White • R7004 Grey
• H86mm - 6030 / 6031
Right QFB.170RH
Screw- on Left QFB.170LH
• H118mm - 6230 / 6231
Right QFB.180RH
Screw- on Left QFB.180LH
• H150mm - 6430 / 6431
Right QFB.190RH
Screw- on Left QFB.190LH
14
