P. 95

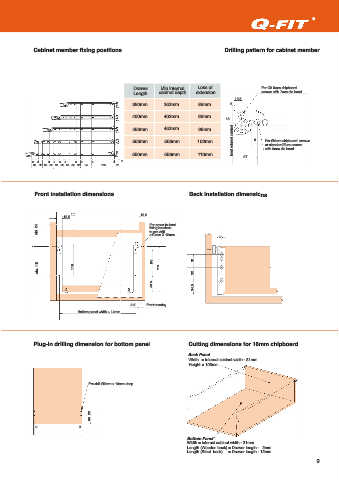

InnoBox 6430 / 6431 Drawer Series
3 Steel Back
2 Drawer
Sides L & R
• Single Extension
• Metal drawer side height 150 mm 4 Front Brackets
• Epoxy coated
1 Cabinet Member CR + CL
• Load capacity of 30 kgs
• Self closing feature 5 Cover Cap
• Flexible 2-dimensional front adjustment
• Side clearance 31mm
• Double out stop safety feature
• Locked-in position when extended
6431 Plug-In
Article no. for
1 Cabinet Member CR & CL
2 Drawer Sides L & R 3 Steel Back
Colors : R9001 Cream • R9010 White • R7004 Grey • R9006 Grey Metallic Colors : R9001 Cream • R9010 White • R7004 Grey • R9006 Grey Metallic
Drawer Length Screw-On Plug-In Cabinet Width Standard
(16mm Side Panel)
350mm 6430.35 6431.35
400mm QMB.43.336
400mm 6430.40 6431.40
450mm QMB.43.386
450mm 6430.45 6431.45
500mm QMB.43.436
500mm 6430.50 6431.50
550mm QMB.43.486
550mm 6430.55 6431.55
600mm QMB.43.536
700mm QMB.43.636
800mm QMB.43.736
4 Standard Front Brackets 5 Standard Cover Cap
Colors : R9001 Cream • R9010 White • R7004 Grey
Screw- on QFB.110RH
ø3.5 x 15mm (CBS) QFB.110LH QPC.160
Press-in QFB.120RH
ø10.5 x 11.5mm QFB.120LH
Expansion QFB.130RH
ø10 x 11.5mm QFB.130LH
Nickel-plated steel
10
